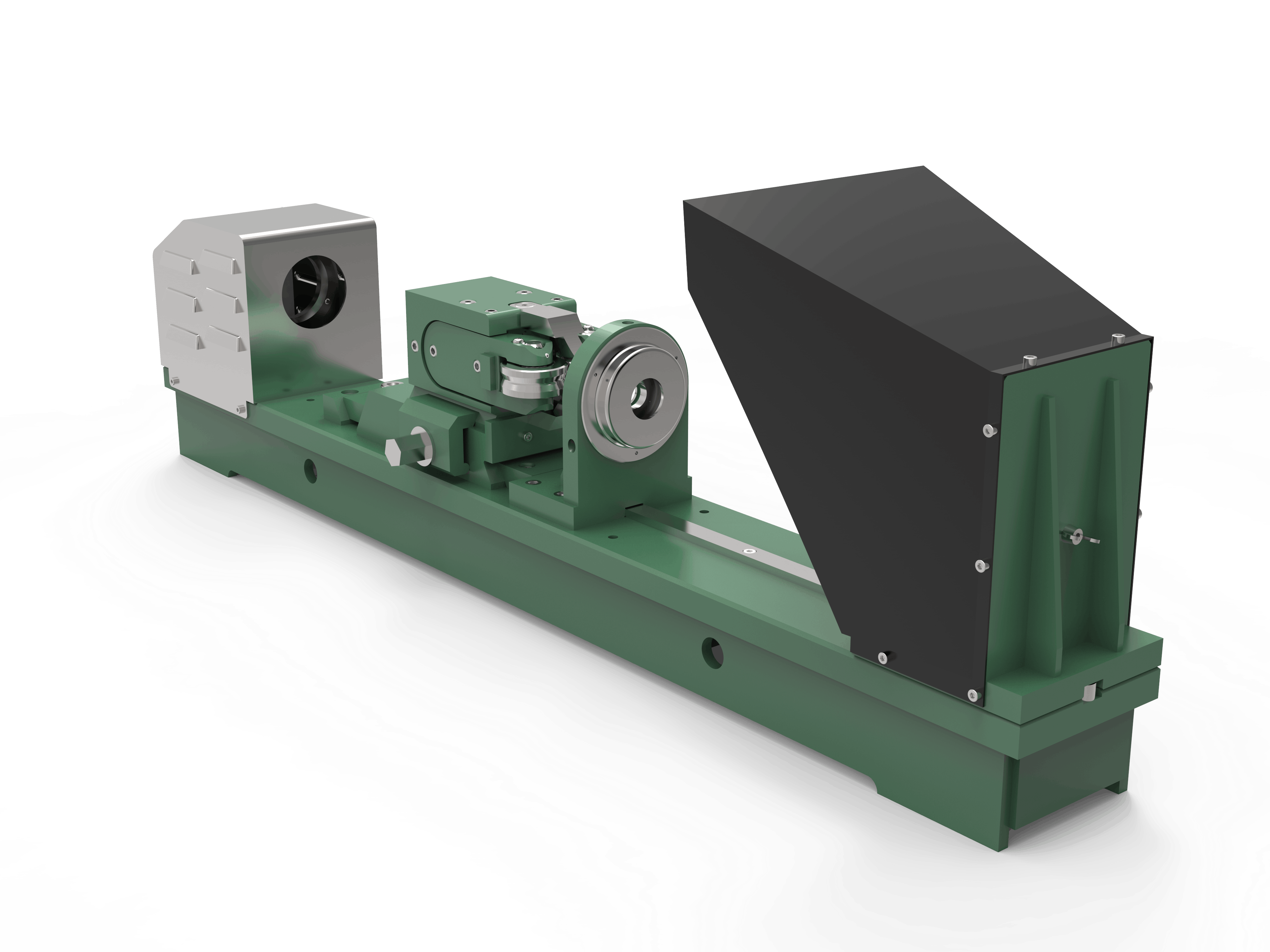

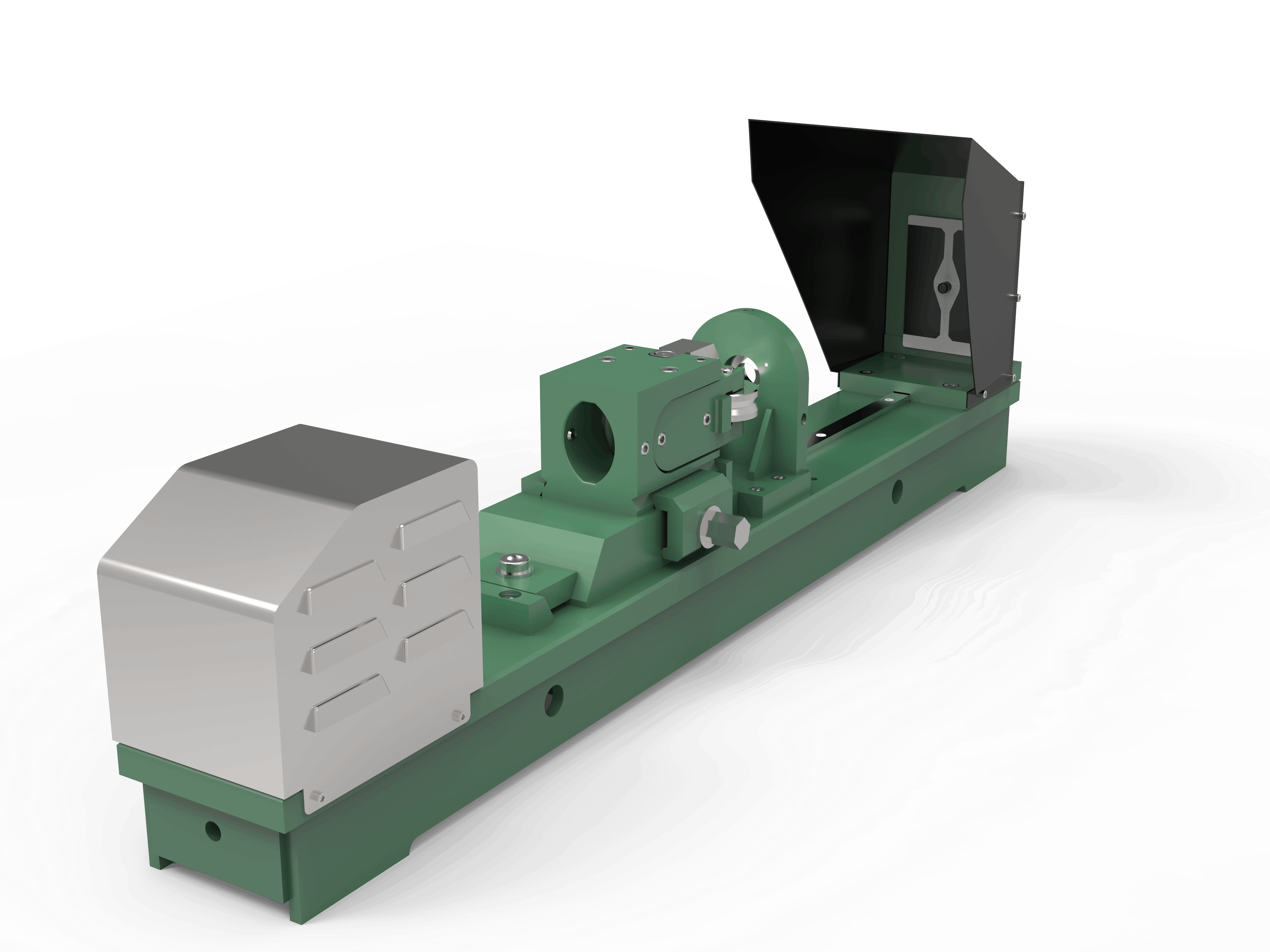

Simple “shadowgraph” system device for setting roller entry guides prior to installing in the rolling mill stand. The system is primarily for use with high-speed roller entry guides.
Guide Features
Fabricated and finish machined steel setting bench.
Steel lamp housing with low voltage LED light source.
Condensing lens.
1 x 1, 1 x 2 , 1 x 3 and 1 x 5 magnification lens systems.
Template housing with target screen.
Plexiglass (acrylic) template or simple geometric template.
