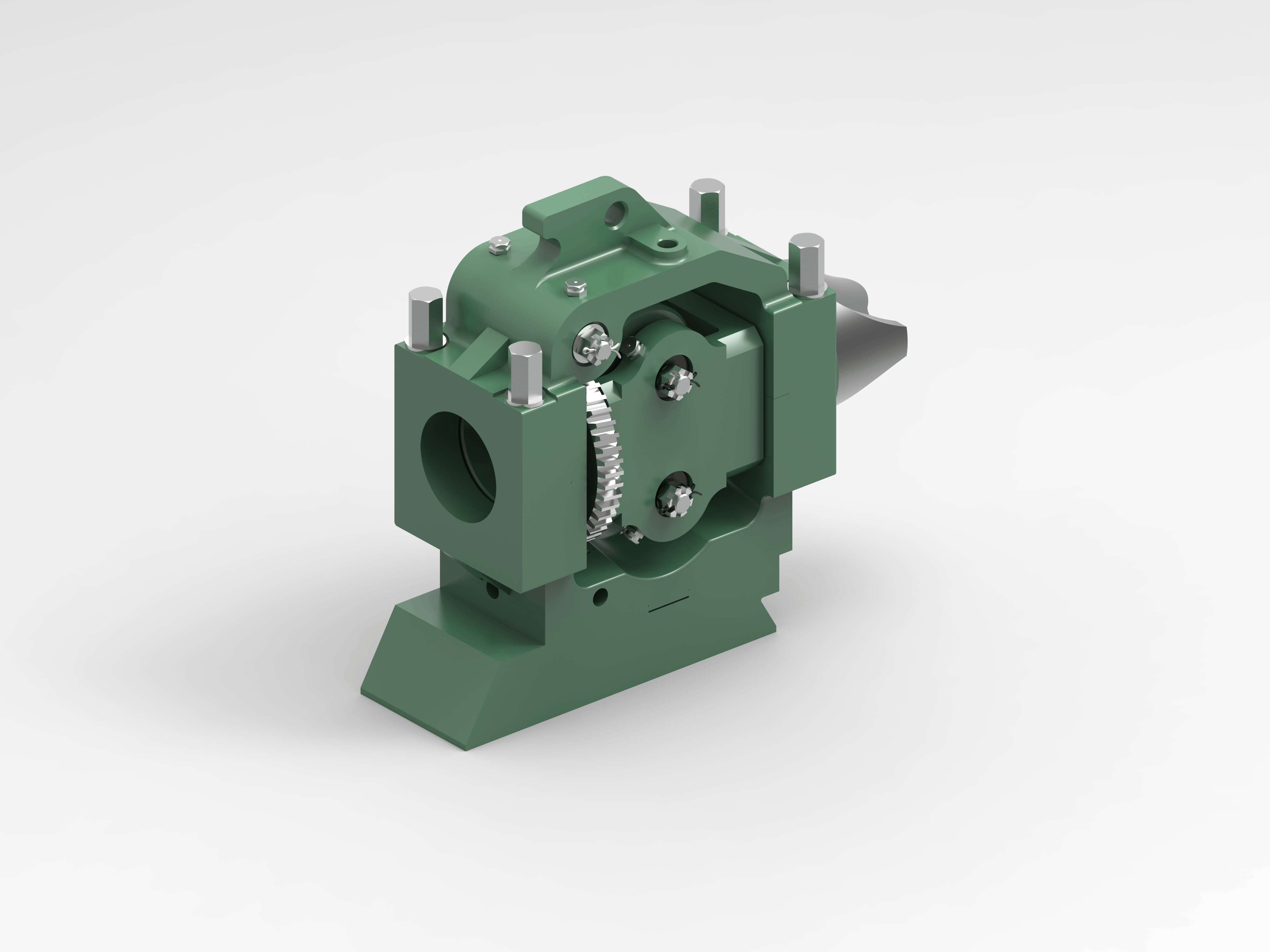

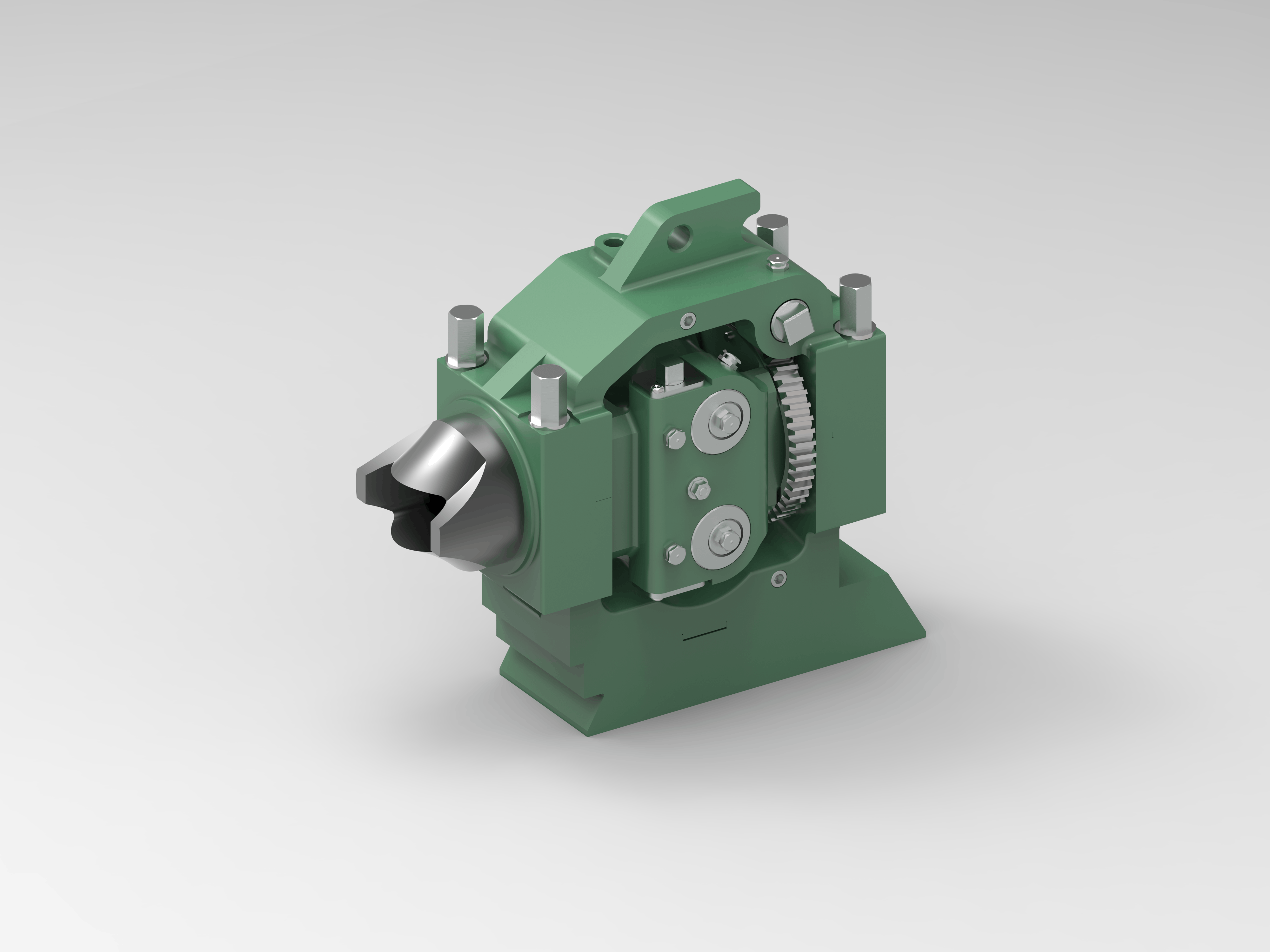

RTC Series - Roller Twister Guides

Roller Twister Guides : RTC Series

Description

Designed as a close rolling stand twister guide for wire rod mill, roughing and intermediate trains. The position of the twister rolls, relative to the delivery pass, require a lower twist angle than other roller twister types.

These guides are recommended for Rod and Bar Mill applications where mill stand centres may be 3 metres or less.



Guide Features

  • Rigid cast carbon steel or ductile iron body and cap.
  • Stainless or Carbon steel cassette-type roller holder.
  • Single-point twist adjustment with positive cassette locking system.
  • Incremental, eccentric roller gap adjustment. Simultaneous single point adjustment, of the roller gap, is available as an option.
  • Rugged taper roller bearings are employed for long trouble free operation.
  • Bearings are sealed against the ingress of contaminants by mill scale and lubricant seals.
  • Hardened steel bearing shafts.
  • Wear-resistant components for long operational life and ease of maintenance.
