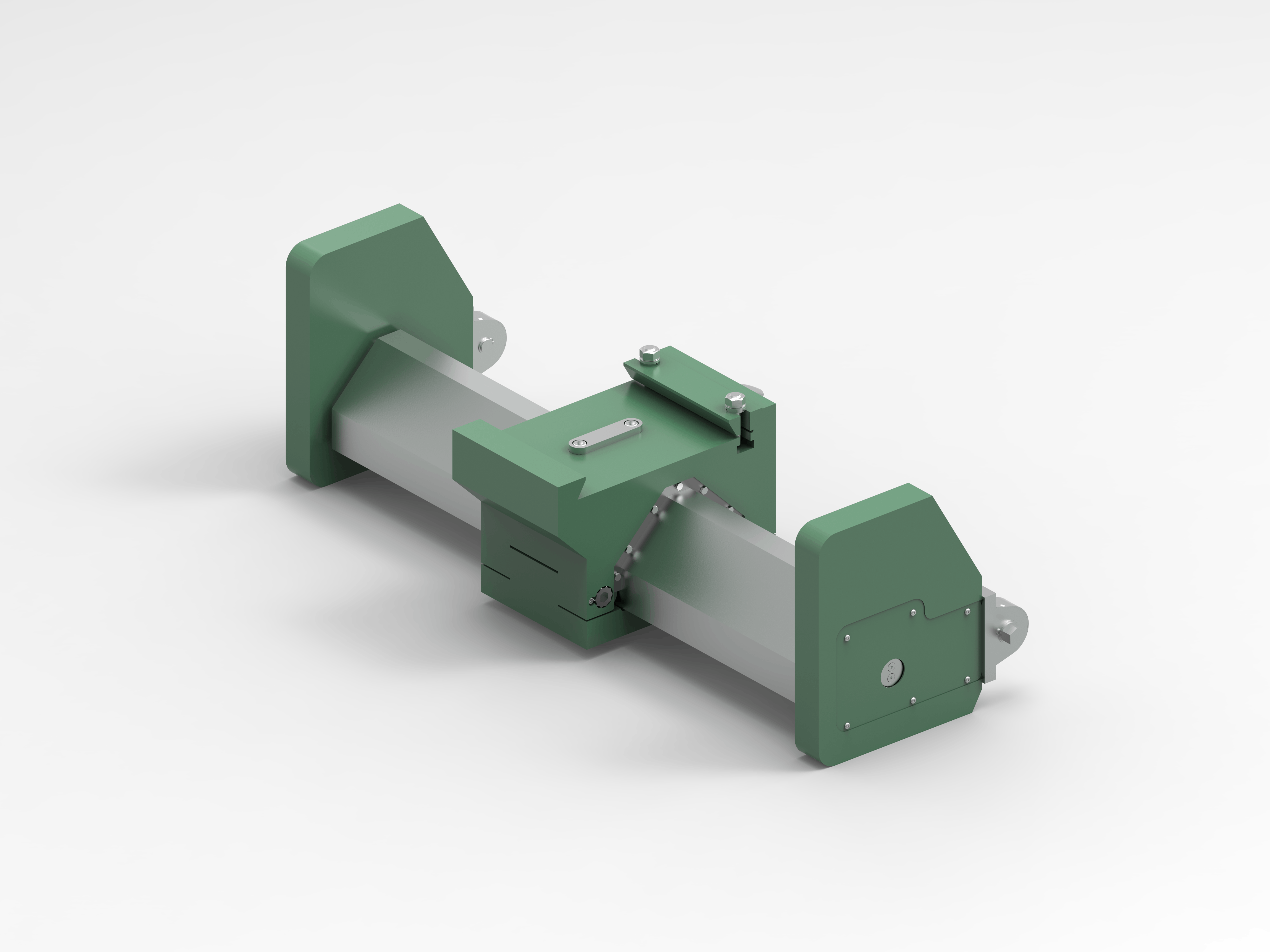

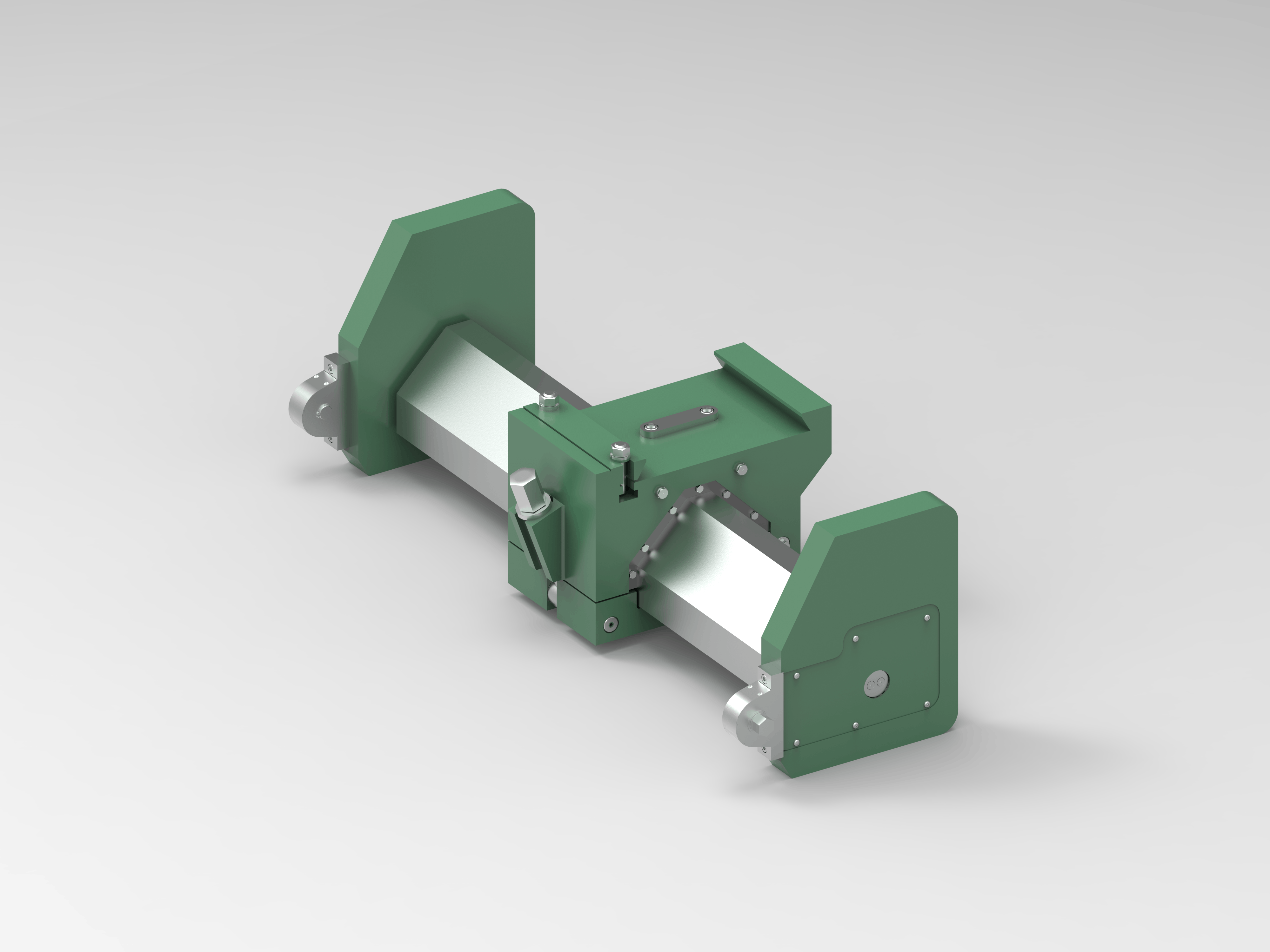

‘Sliding Saddle’ Rest Bars - Rest Bars

Rest Bars : ‘Sliding Saddle’ Rest Bars

Description

‘Sliding Saddle’ Rest Bars are essential for smooth pass changing and on-mill alignment adjustments.

The rest bars are adaptable to most rolling configurations.

Lateral adjustment may be manual or power assisted.

Designs are available with X, Y and Z-axis adjustments as may be required.



Guide Features

  • SAE400 Series stainless steel beam.
  • SAE300 series stainless sliding saddle.
  • Bronze wear pads. Adjustable for wear and easily replaceable.
  • Laminated steel wiper blades to remove mill scale from sliding surfaces.
  • Water shed design to guide mill water and mill scale from sliding surfaces.
  • Rugged acme thread lead screw for lateral adjustment. Supplied in SAE4140 drive shaft steel.
  • Backlash eliminator. To ensure positive, accurate adjustment.
  • Positive, single-point saddle locking system.
  • Safety saddle lock for vertical installations.
  • Special designs are available for “housing-less stand” configurations.
