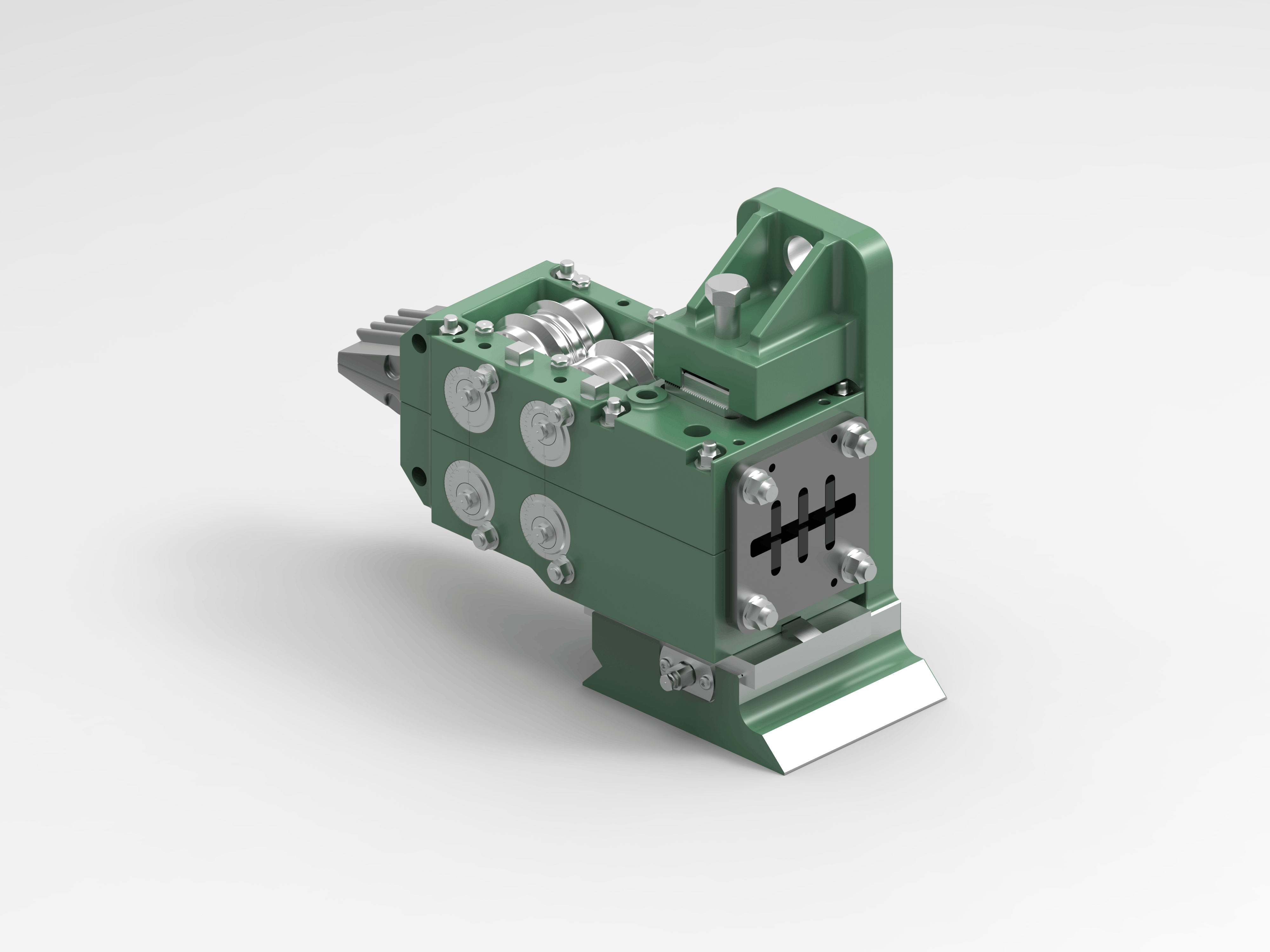

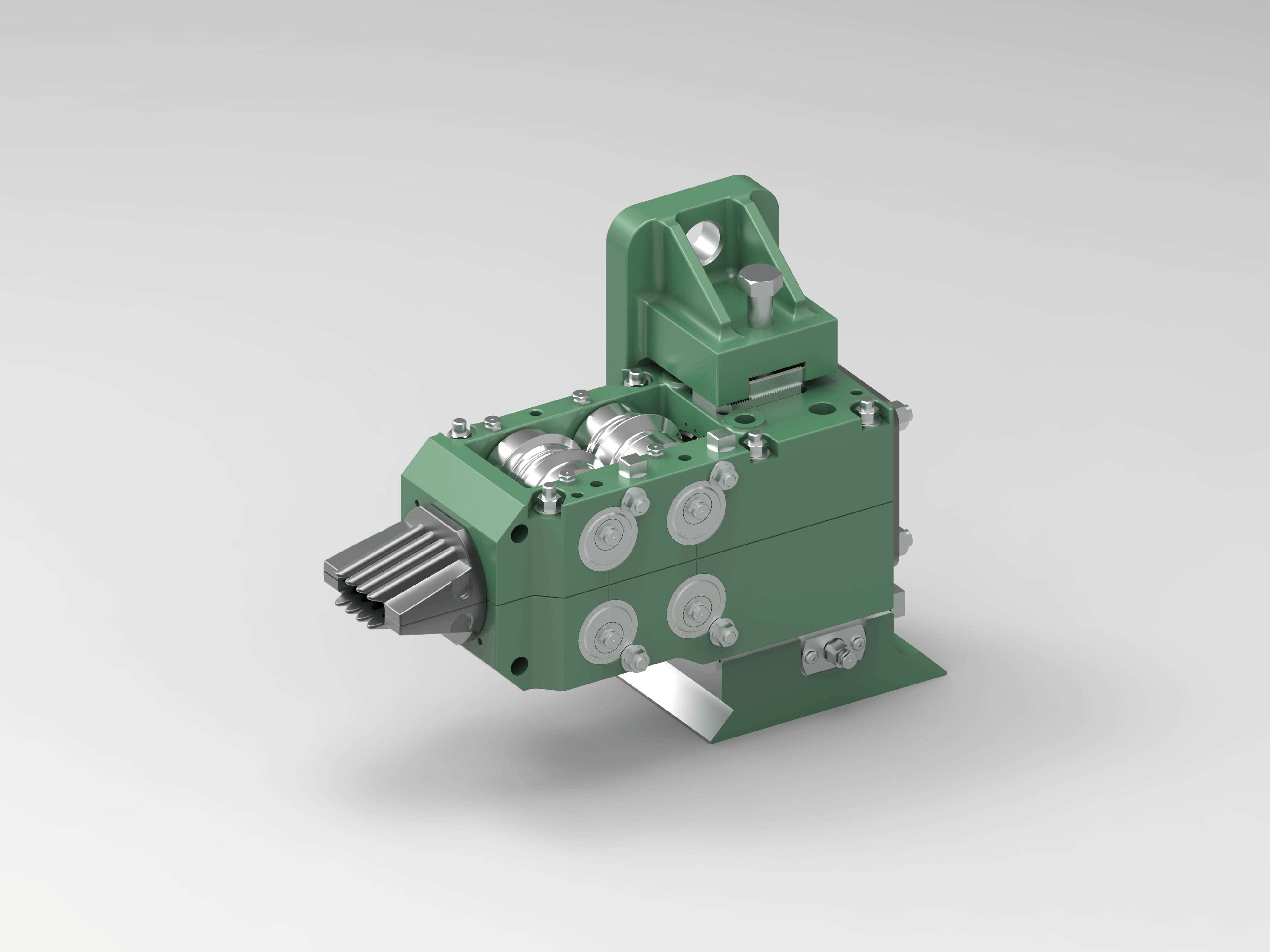

RT-1CS/4/5 Series - 4 Roller Slitter Guides

4 Roller Slitter Guides : RT-1CS/4/5 Series

Description

A roller slitter guide designed for the slit rolling production of reinforcing bars. This guide may be used for the slitting of four strand or five strand re-bars. The guide is installed on the mill stand rest bar using a special guide holder. The guide holder is equipped with a FPA (Fine Pass Adjustment) system for accurate alignment with the receiving roll pass.

Guide Features

• Cast stainless steel body.
• Simple single point simultaneous guide roller gap adjustment.
• High capacity taper roller bearings for bar mill operation.
• Hardened steel and wear resistant components where required.
• Supplied with a quick change mounting, using a guide holder. Non-holder types are also available for some restricted situations.
• All slitter guides are recommended to be used with an FPA system.
