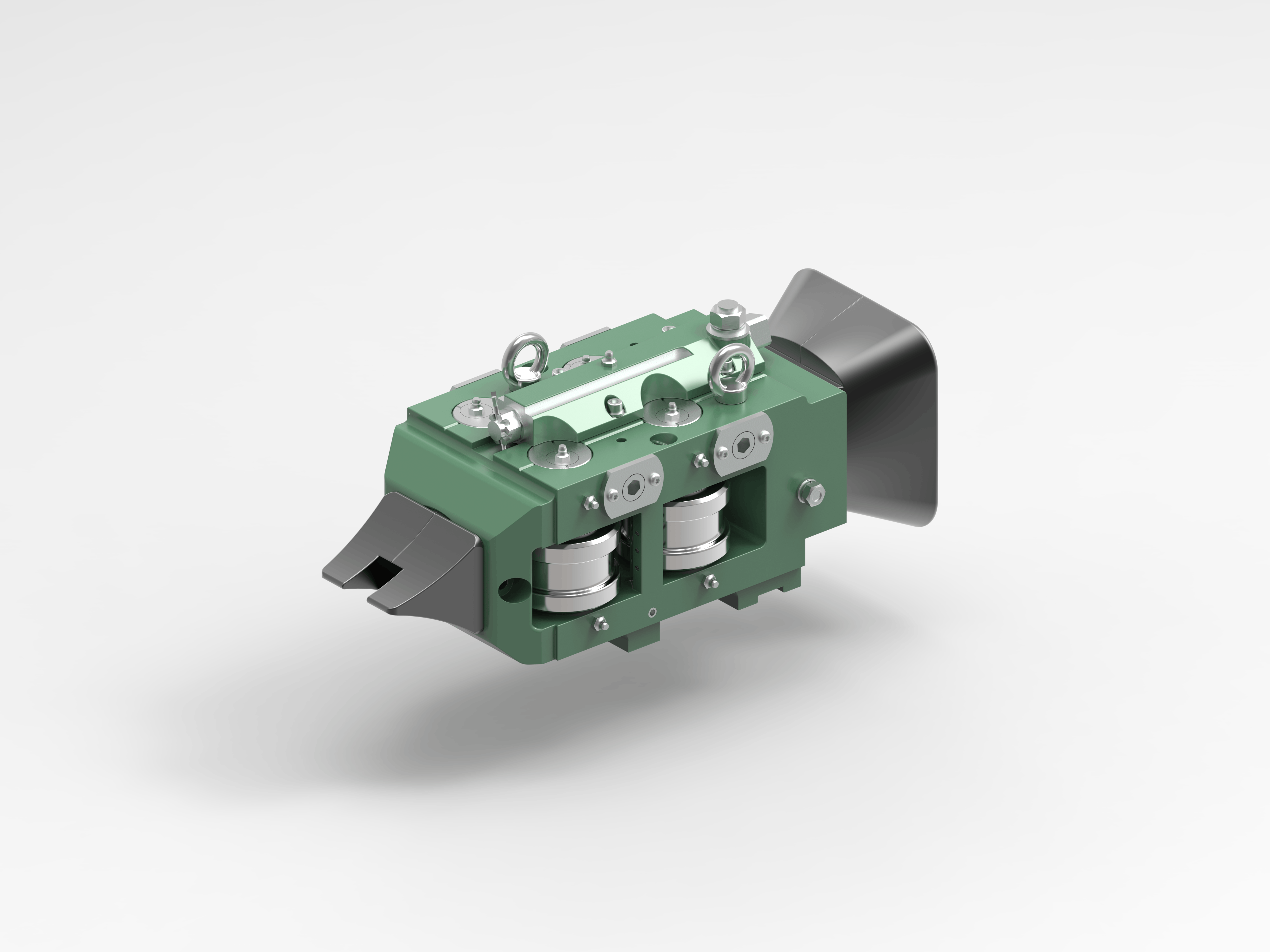

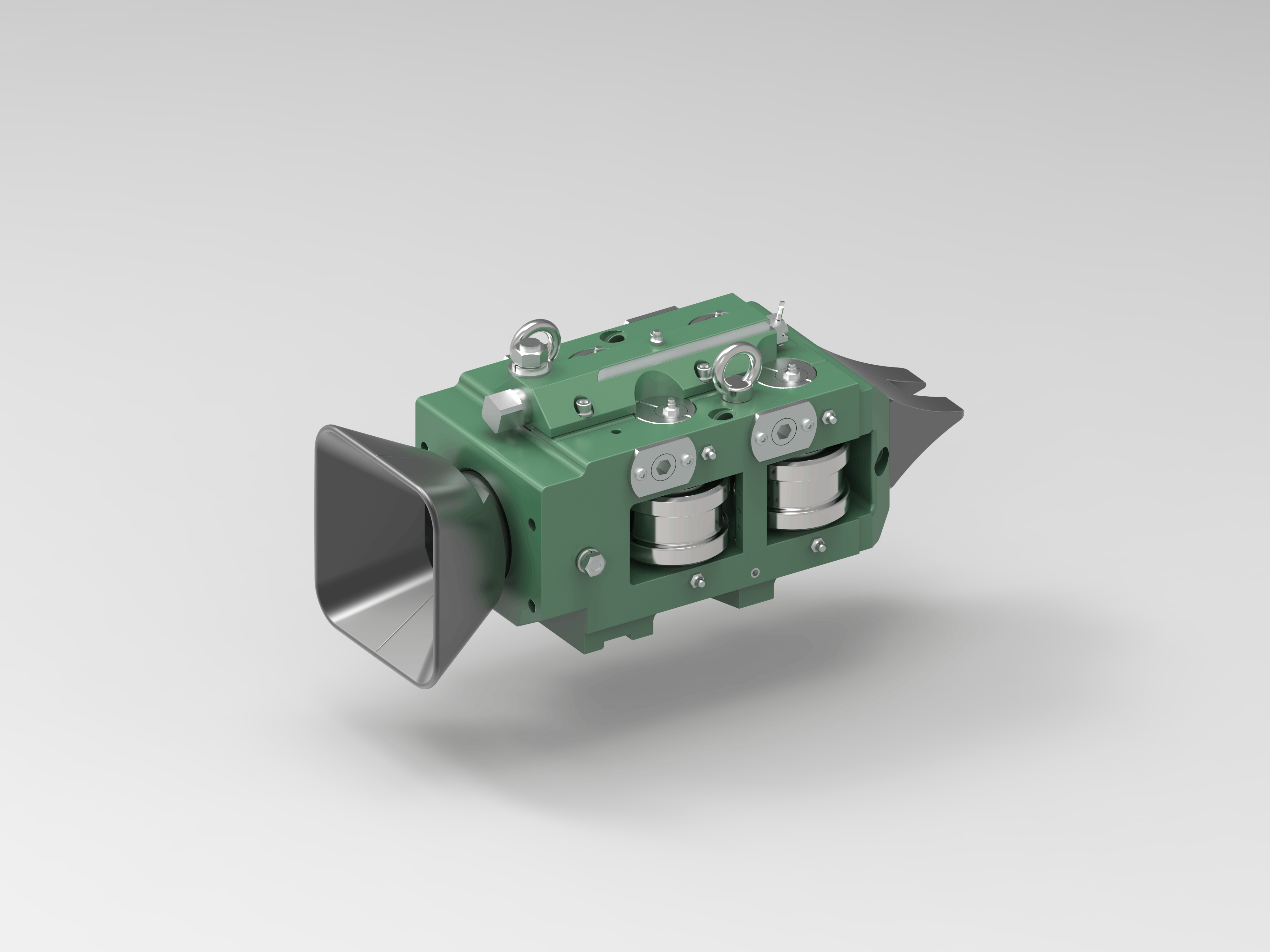

RE-WBF Series - 4 Roller Entry Guides

4 Roller Entry Guides : RE-WBF Series

Description

Designed as a finishing guide for SBQ (Special Bar Quality) bar production, the 'rugged' design of the RE-WBF provides the necessary support to control close tolerance bars. The use of this particular guide is recommended together with a Stabilizer Guide for accurate control when multi-strand slitting.

The guide range covers sizes for 6mm through 100mm rounds and square SBQ alloy and stainless steel quality bars.

Guide Features

• Rigid cast stainless steel or, for large sizes, carbon steel guide body for non-flexing, accurate guiding for Special Bar Quality (SBQ) rolling.
• Single point, simultaneous on-mill adjustment of all four guide rollers.
• Short, insert guiding surfaces to reduce incidences of “pick-up”.
• Nosepiece for precise guidance into the roll pass.
• High capacity taper roller bearings.
• Nitrided and ground steel wear parts for long life.
