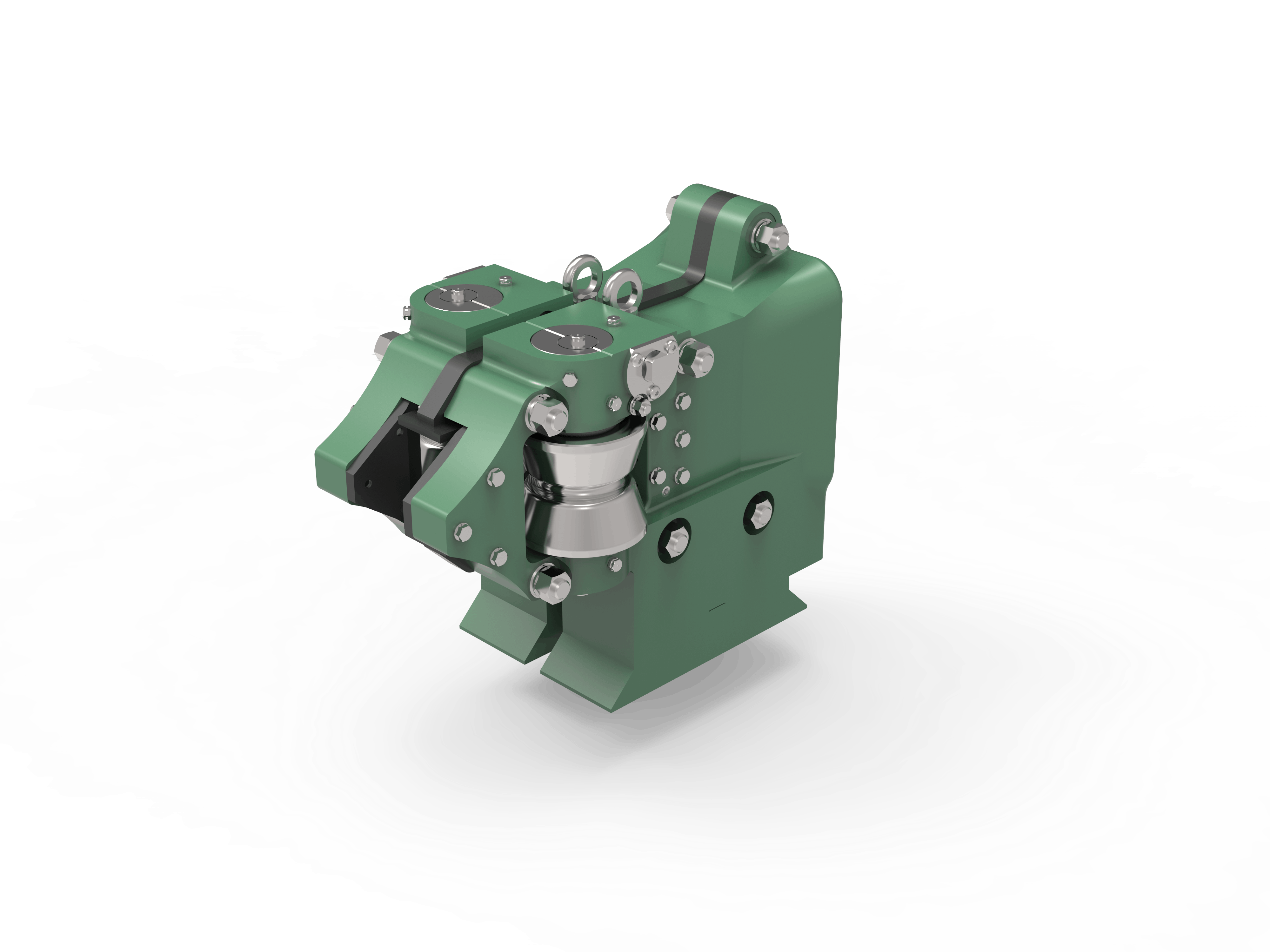

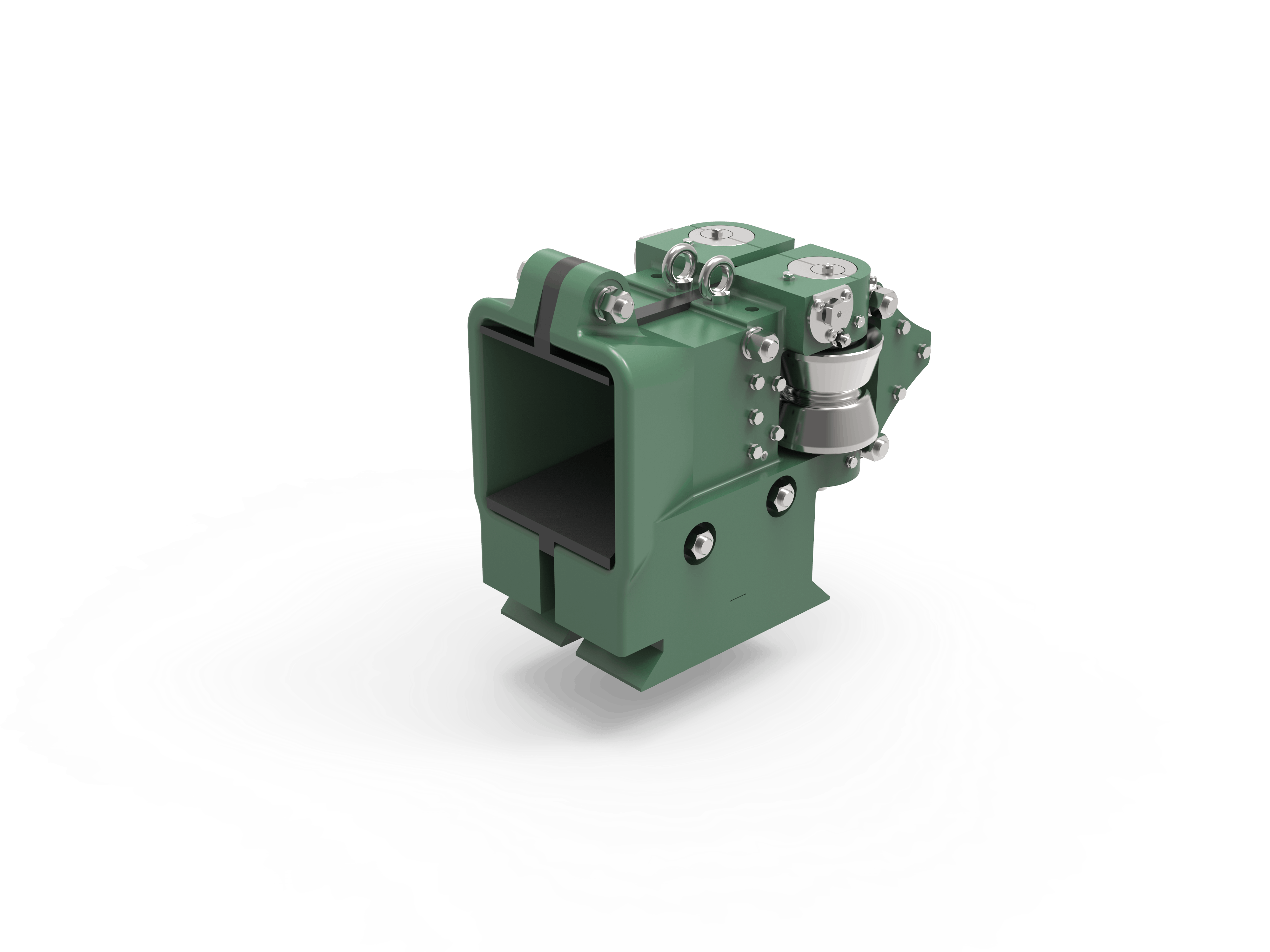

Designed primarily for rod and bar mill services where on-line adjustment is not required. The WB series may also be used for the guiding large and medium sections, and structural products.
Guide Features
Standard versions incorporate incremental adjustment to the roller gap setting.
Single Point simultaneous roll gap adjustment is available for all versions.
Special models with optional rear adjustment are offered at extra cost.
Nitrided and ground steel bearing pins and wear parts.
High capacity taper roller bearings protected from the ingress of contaminants by grease and mill scale seals.
Rugged, corrosion resistant cast steel or ductile iron construction.
Capable of controlling a wide range of bar and structural products.
